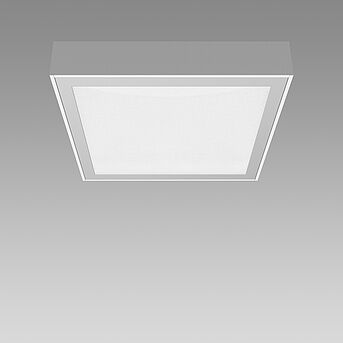

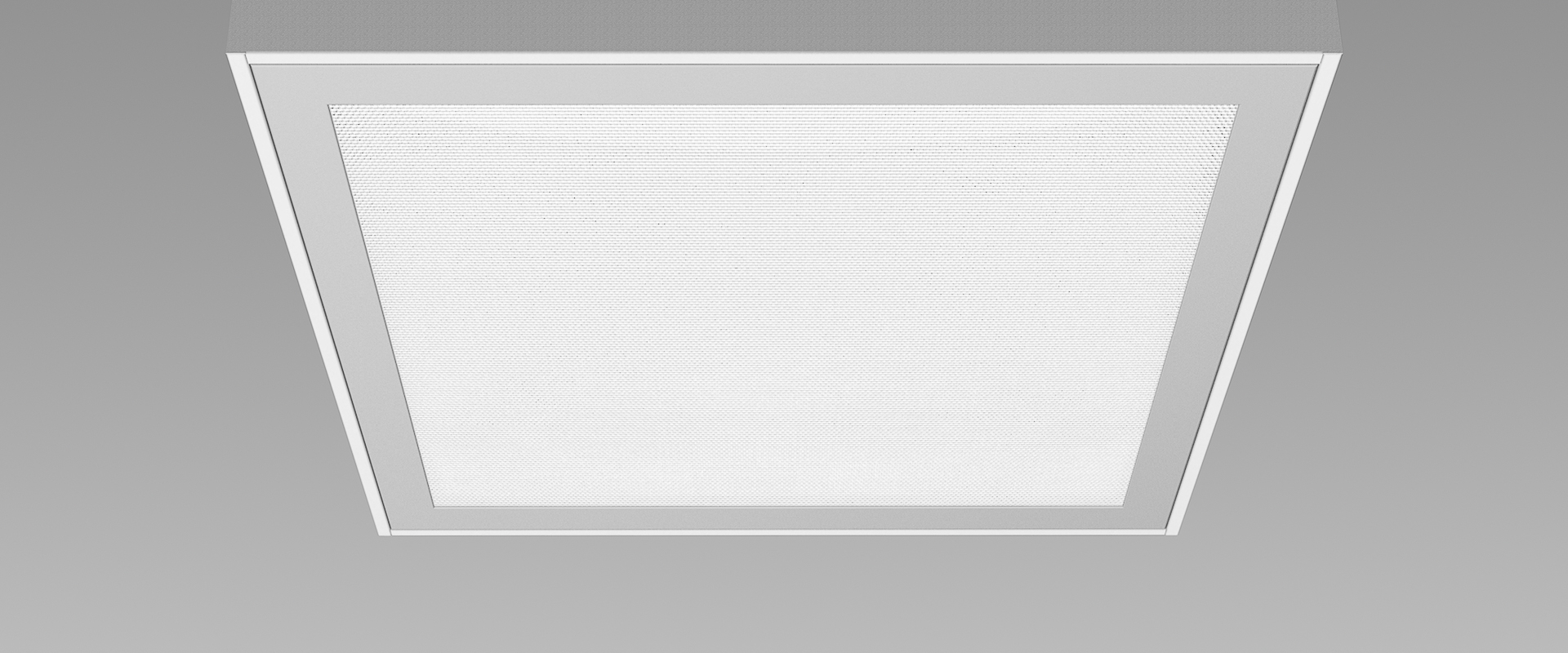

Explosion-proof ceiling mounted luminaire for clean room

Puro Ex LED

Luminaires in clean rooms are designed to release as few particles as possible into the space, and they are required to meet different standards. The requirements for explosion protection are even higher. The combination of a careful choice of materials, intelligent design and innovative technology ensures that the Puro explosion-proof ceiling mounted luminaire for clean room meets these criteria.

Features Features

For use in potentially explosive zones 2 (gas) and 22 (dust)
Meets all clean room requirements
Housing made of sheet steel, galvanised and painted white with antibacterial surface protection
Diffuser made of tempered safety glass, frame made of anodised aluminium
Microprismatic optics, UGR ≤ 19
IP65 protection rating
Impact strength IK08
Homogeneous illumination

Specifications Specifications

for ambient temperatures –20 to +40 °C
Colour Rendering Index: CRI > 80
Operating unit integrated
Emergency lighting available on request
Square or rectangular shape
Dimmable digital DALI

Fields of application Fields of application

Industry
potentially explosive zones 2 (gas) and 22 (dust), clean rooms, laboratories

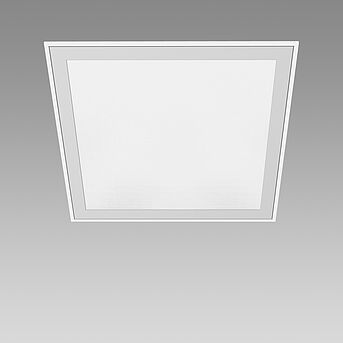

Further products of the PURO Family
