Recessed downlight

Novo 2 Square

As a continuation of the proven successful NOVO range, NOVO 2 sets new standards in terms of quality and versatility. Homogeneous and uniform illumination always remains the indispensable standard, allowing any room to shine in perfect light. The reflectors and lenses in the NOVO 2 range offer an impressive variety of beam angles and different wallwasher variants. This flexibility allows the lighting to be precisely customised to any application.



Features Features
  • Comprehensive range offers numerous application options with a uniform design language
  • Universally usable product family for almost all areas of application
  • High-quality LEDs with CRI ≥90 and up to 143 lm/W
  • High-quality workmanship - luminaire housing and cover edge made of powder-coated die-cast aluminium
  • Easy installation thanks to plug connector between control gear and luminaire and through-wiring option
  • Office-compatible versions available
  • Wide trim facilitates recess mounting
  • Intelligent clamp system for covering ceiling thicknesses of up to 40 mm (excl. Slim models)
  • Sustainable thanks to the resource-saving modularity of the product family
Specifications Specifications

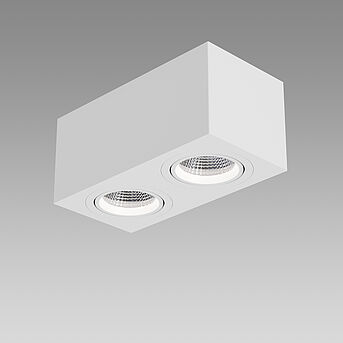

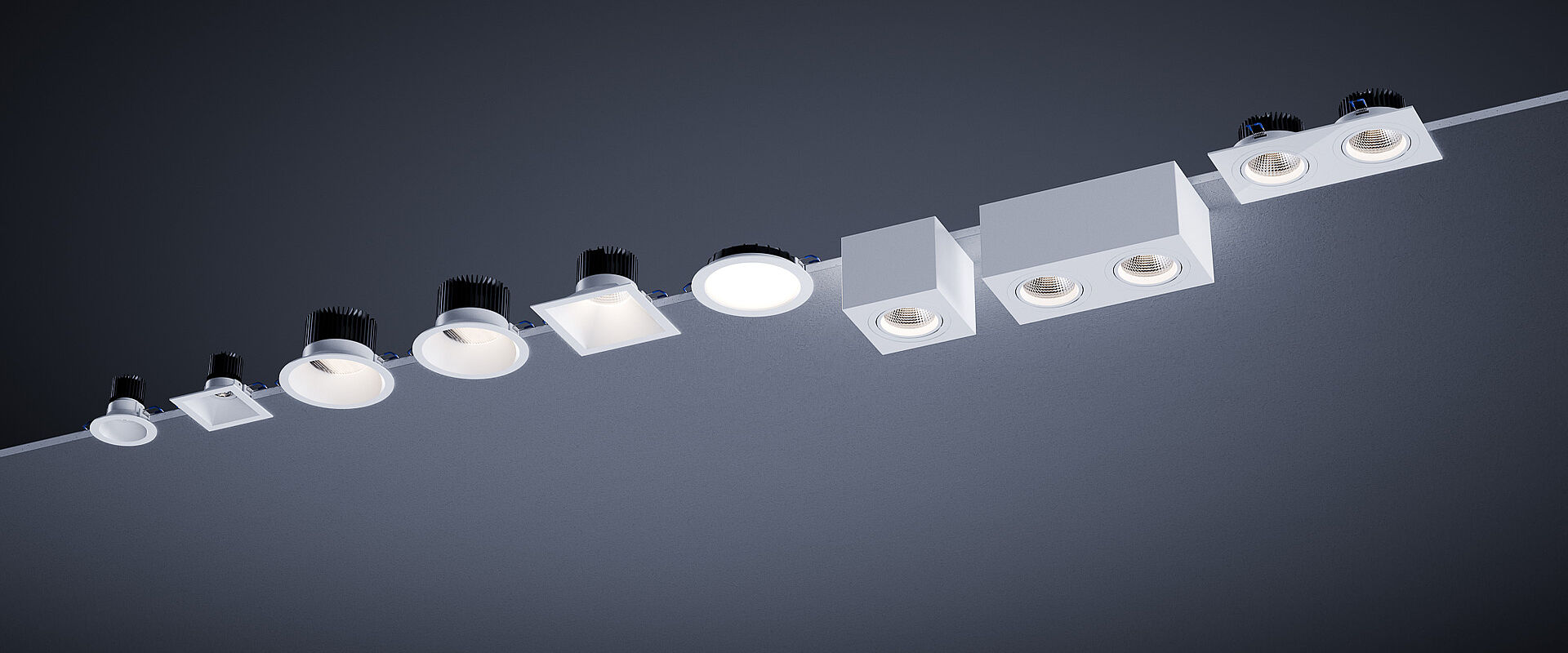

  • NOVO 2 is available as a downlight, wallwasher, slimdownlight and as a recessed directional spotlight and surface-mounted directional spotlight (single or double flame) and as round and angular versions available
  • Round and angular versions available
  • Light colours 2,700 K (directional spotlights only), 3,000 K or 4,000 K
  • Housing available in white, black, brushed aluminium or silver
  • Recessed versions offer IP44 protection on the room side (various recessed downlights with IP55 protection available)
  • Symmetrical and asymmetrical beam angles with reflectors, lenses or diffuse lenses
  • Operating unit included in delivery
  • ON/OFF and DALI control system
  • Slimdownlights can be installed in ceilings ≥40 mm
  • Cast-in housings available for all round versions and selected square versions

Fields of application Fields of application
  • Retail & Hospitality
    retail spaces, presentation of merchandise, restaurants, hotels, shop windows, exhibition spaces
  • Office & Education
    offices, conference rooms, art & culture establishments
  • Home & Living

Version
0 Article
PROH_10163_INTERNET_24865_20240805_131827134.JPG white
PROH_10165_INTERNET_24867_20240805_131934532.JPG alu brushed
PROH_10150_INTERNET_24852.JPG black
Luminous flux of luminaire
1900 lm
2000 lm
2565 lm
2700 lm
Colour temperature
3000 K warm white
4000 K neutral white
Light control
ON/OFF
DALI2
Beam angle
27
40
60
80
