Walk-over ground-recessed luminaire

MINILINEAR - MINIROUND

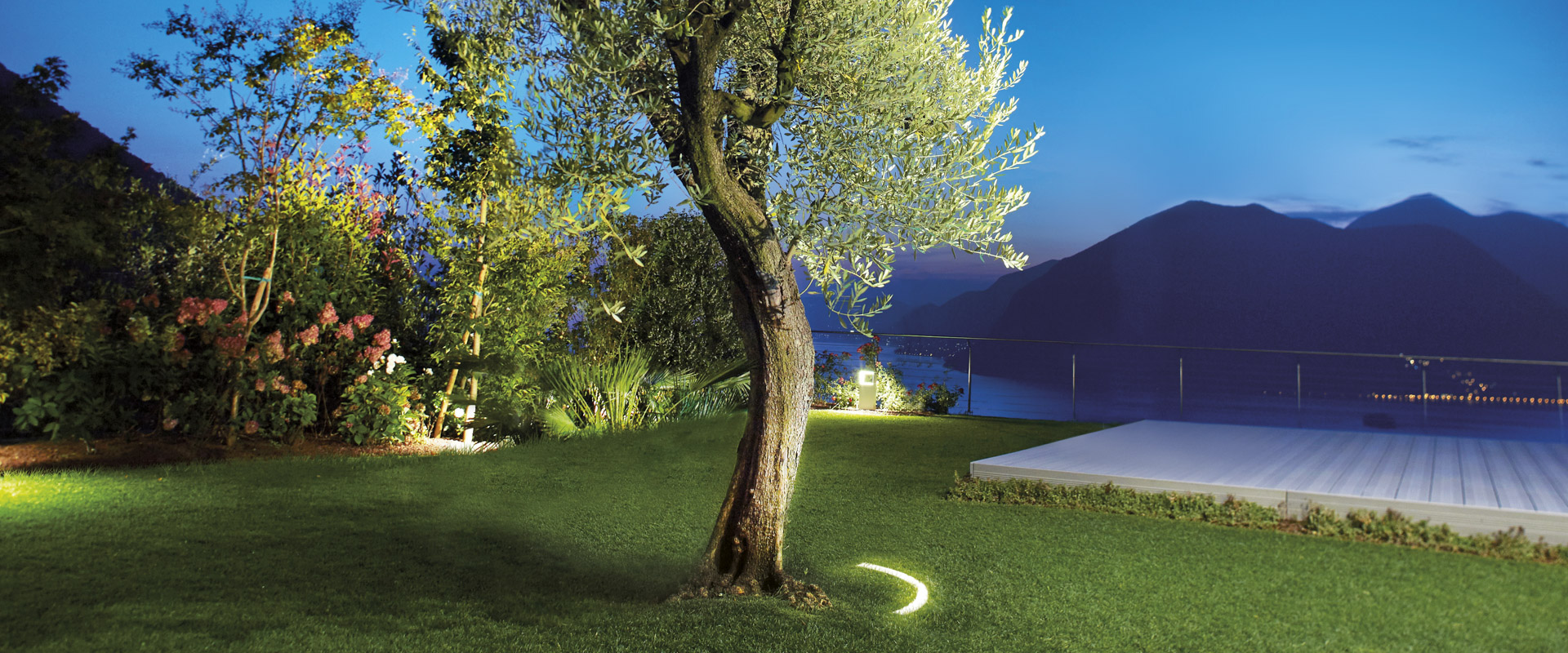

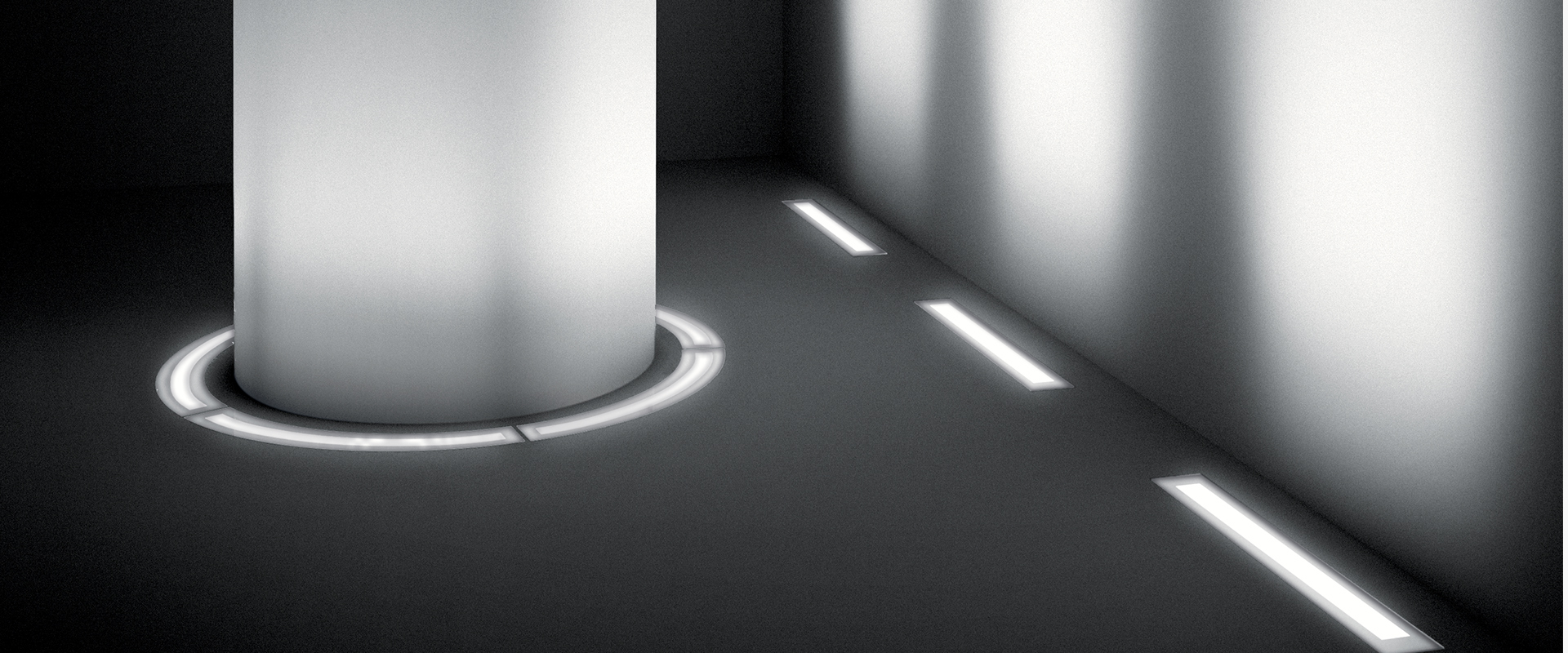

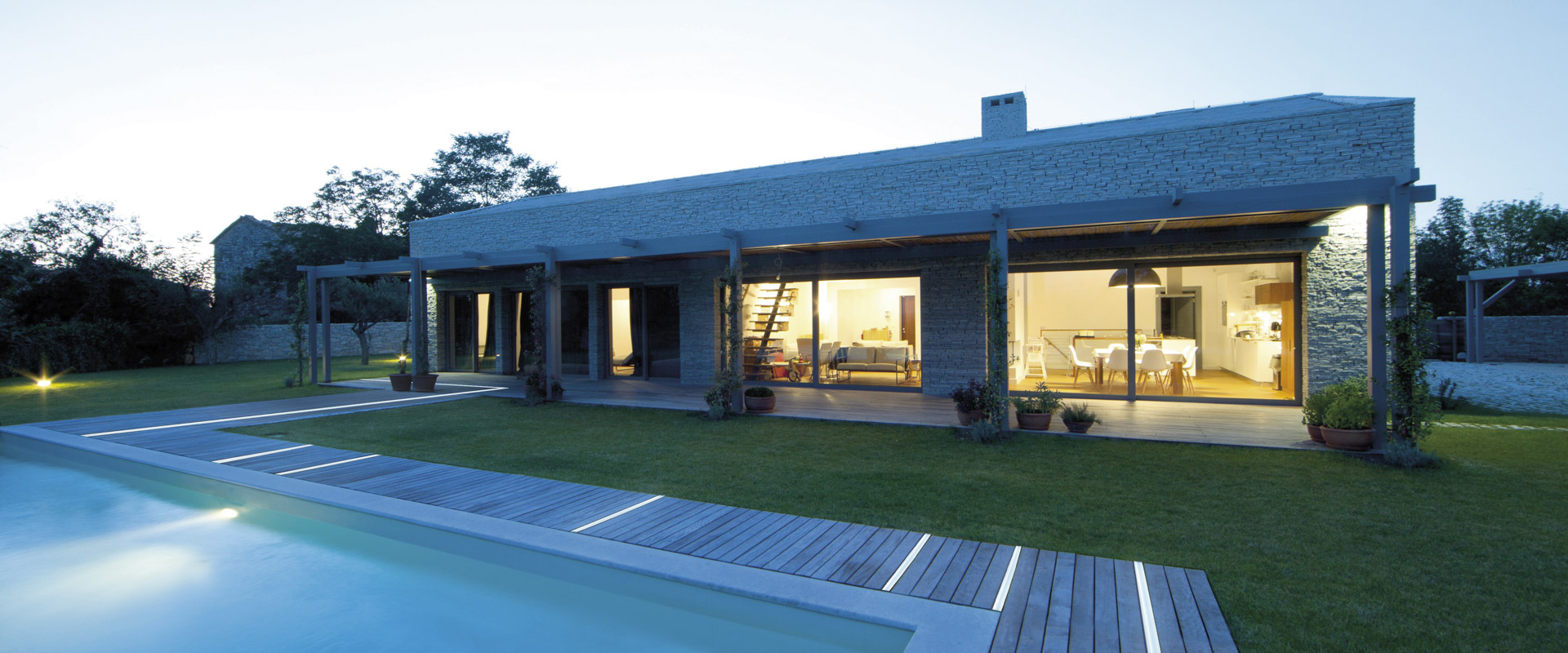

MINILINEAR is a recessed luminaire perfectly flush with the floor, it disappears completely integrating itself with the architecture. The soft or accent lighting effect mark pathways and facades discreetly. MINIROUND embraces the elegant flush lines of MINILINEAR in a curved structure able to design striking lighting frames. MINIROUND emphasizes trees and green foliage, colonnades, sculptures and non-linear paths. On our Regent Lighting website you will find the complete SIMES portfolio. Sales opportunities for SIMES products extend to the Swiss and German markets to ensure the highest quality and first-class service. To find out more about the SIMES portfolio, visit www.simes.it



Features Features
  • Die-cast and extruded aluminium housing with high corrosion resistance
  • Die-cast aluminium housing with high corrosion resistance
  • Marine grade stainless steel AISI 316L front trim 2 mm thick or aluminium
  • Stainless steel A4 screws
  • Luminaire supplied with neoprene H07RN-F cable and connector
  • Double powder paint
  • Accessible, maximum load capacity 500 kg
Specifications Specifications
  • Operating unit included in delivery
  • ON/OFF, DALI version upon request
Fields of application Fields of application
  • Outdoor
Version
0 Article

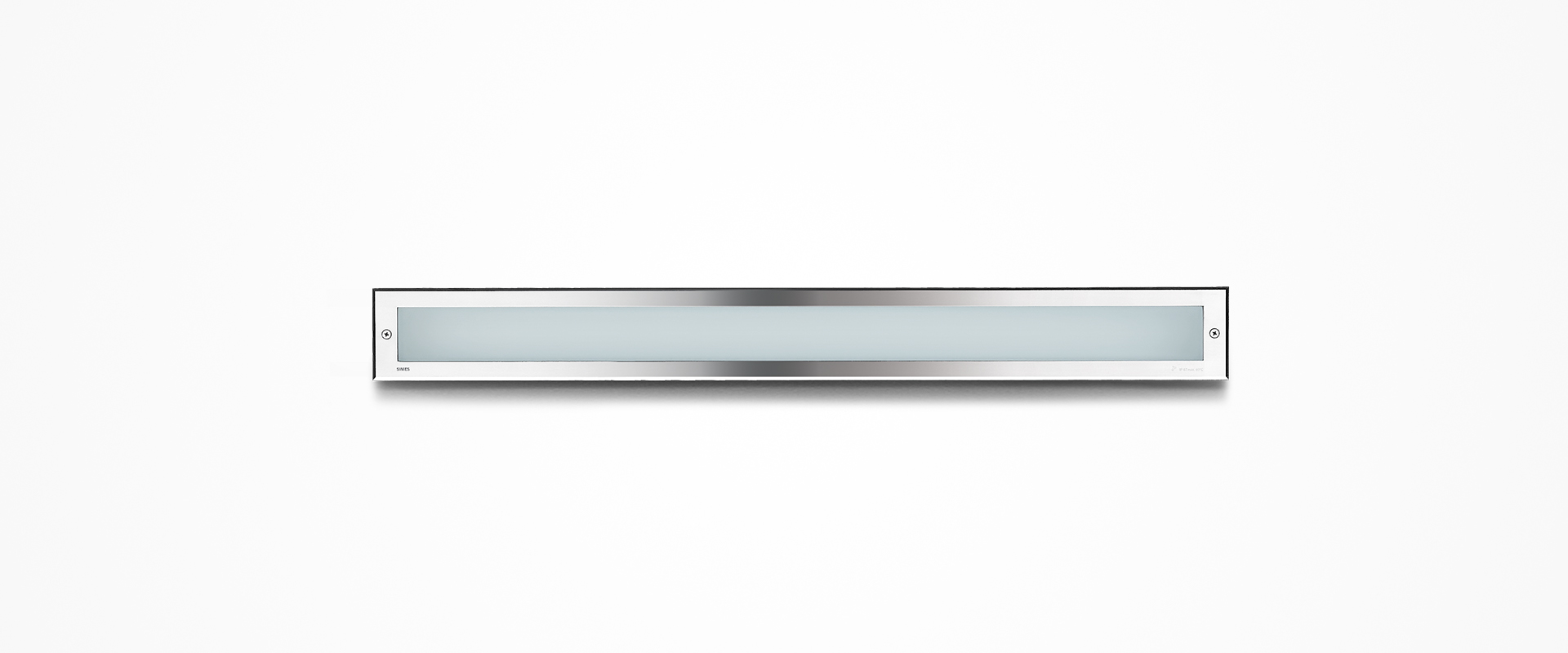

IM0048872 Minilinear, full glass floor level

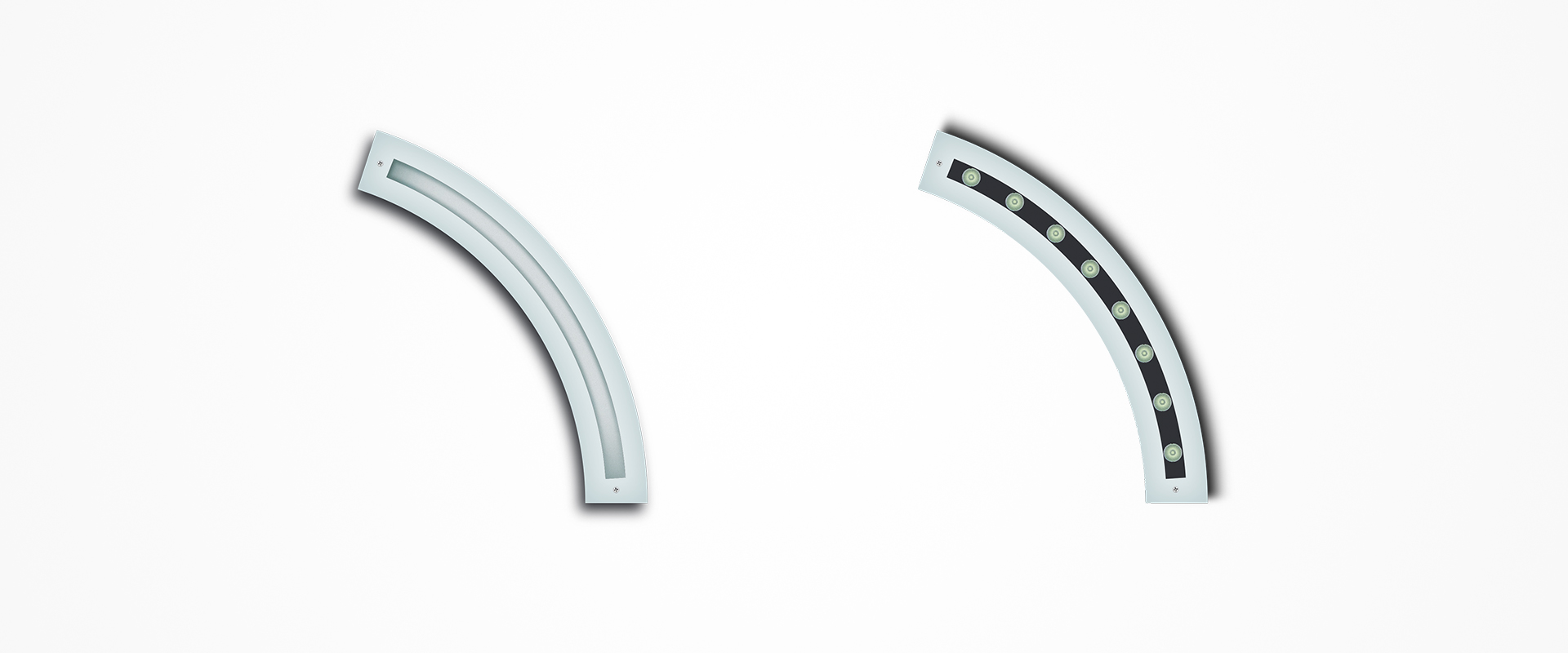

PROH_8959_TK.jpg Miniround, full glass floor level
S_MINILINEAR_ACCIAIO100CM_ACIDATO_TK.jpg Minilinear, stainless steel
Length x width
487 mm x 64 mm
System power
10.7 W
13.6 W
Colour temperature
2700 K warm white
3000 K warm white
4000 K neutral white
Notes
matt
partial frosted
