Walk-over ground-recessed luminaire

ZIP SQUARE COMFORT

ZIP COMFORT with its wide range of solutions is the right answer to many projects. Available in round and square shape, four sizes and two different front ring finishing: stainless steel or black painted aluminium. Four different beam angles, from the soft and diffused effect, To the narrow beam or asymmetrical distribution with cowels. The wider beam is obtained with a comfortable double inner reflector and COB LED. The light distributions are very precise due to the tiltable optics. On our Regent Lighting website you will find the complete SIMES portfolio. Sales opportunities for SIMES products extend to the Swiss and German markets to ensure the highest quality and first-class service. To find out more about the SIMES portfolio, visit www.simes.it



Features Features
  • Accessible, maximum load capacity 1000 kg
  • Die-cast aluminium housing with high corrosion resistance
  • 1200h resistance to salt spray test
  • Embedding housing in polypropiylene
  • Acid-etched toughened glass
  • Low surface temperature
  • Impact strength IK09
Specifications Specifications
  • Ceilling trim in stainless steel or in colour black
  • Colour temperatures: 2700 K, 3000 K, 4000 K
  • Operating unit integrated
  • ON/OFF, DALI version upon request

Fields of application Fields of application
  • Outdoor

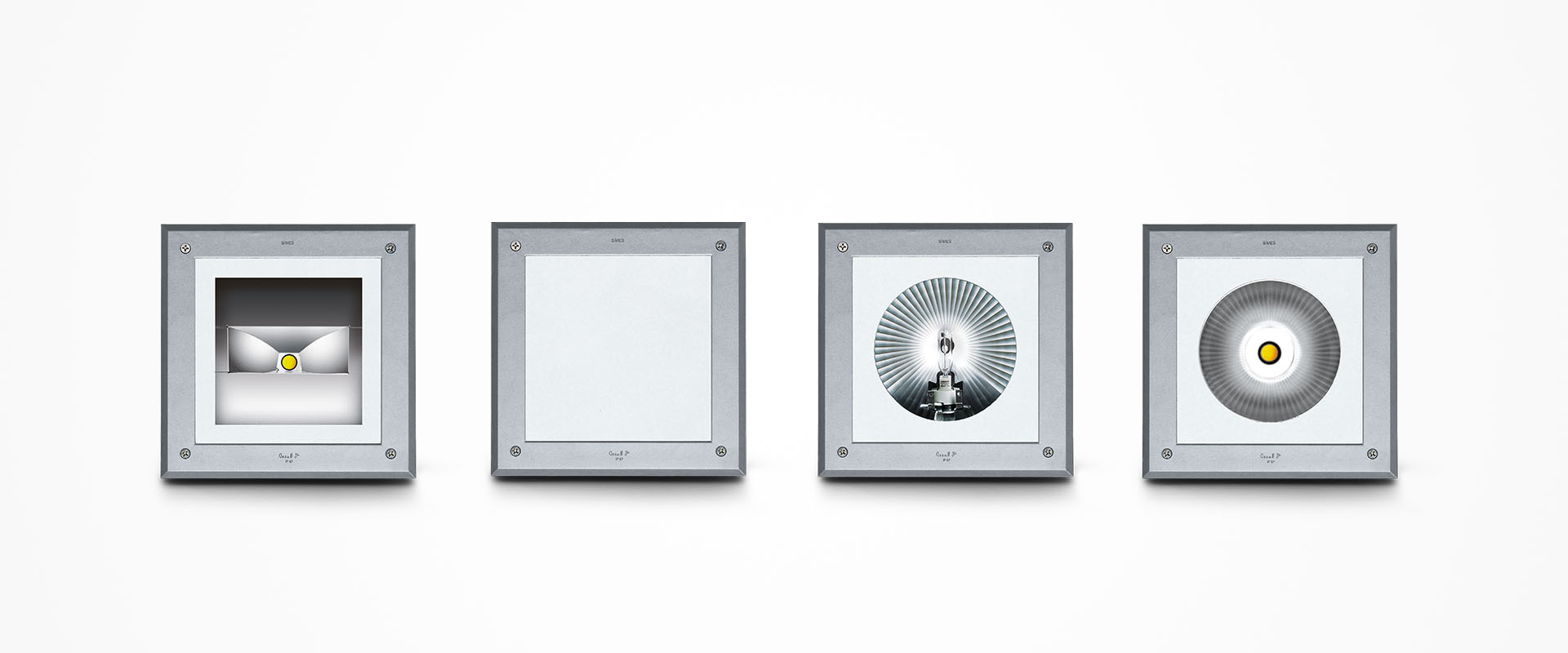

Version
0 Article
S_MICROZIPQ_ACCIAIO_VETROSEMIACIDATO-COMFORT_TK.jpg Microzip stainless steel
S_MINIZIPQ_ACCIAIO_VETROACIDATO-COMFORT_TK.jpg Minizip stainless steel
S_ZIPQ_ACCIAIO_VETROSEMIACIDATO-COMFORT_TK.jpg Zip stainless steel
S_MEGAZIP_QUADRATO_ACCIAIO_VETROSEMIACIDATO_COB_TK.jpg Megazip stainless steel
S_MICROZIPQ_ALLUMINIO_VETROSEMIACIDATO-COMFORT_TK.jpg Microzip aluminium black
S_MINIZIPQ_ALLUMINIO_VETROACIDATO-COMFORT_TK.jpg Minizip aluminium black
S_ZIPQ_ALLUMINIO_VETROACIDATO-COMFORT_TK.jpg Zip aluminium black
S_MEGAZIPQ_ALLUMINIO_VETROSEMIACIDATO-COMFORT_TK.jpg Megazip aluminium black
System power
2.2 W
3.6 W
Colour temperature
2700 K warm white
3000 K warm white
4000 K neutral white
Length x width
85 mm x 85 mm
Beam spread characteristics
narrow beam
wide beam
Beam angle
12°
91°
