TITAN

    Powerful light for high sporting performance.

    TITAN stands for uncompromising performance in professional lighting. With its robust construction, high efficiency and versatility, this high-performance luminaire sets new standards. The sophisticated linear shape combines functionality with contemporary design and makes TITAN the ideal solution for the most demanding environments.

    From sports halls and multi-purpose halls to large indoor spaces and covered outdoor areas - TITAN reliably delivers optimum lighting under the toughest conditions. Thanks to its modern lens optics or diffuse cover, ball-proof design and flexible mounting options, TITAN is suitable for numerous applications.

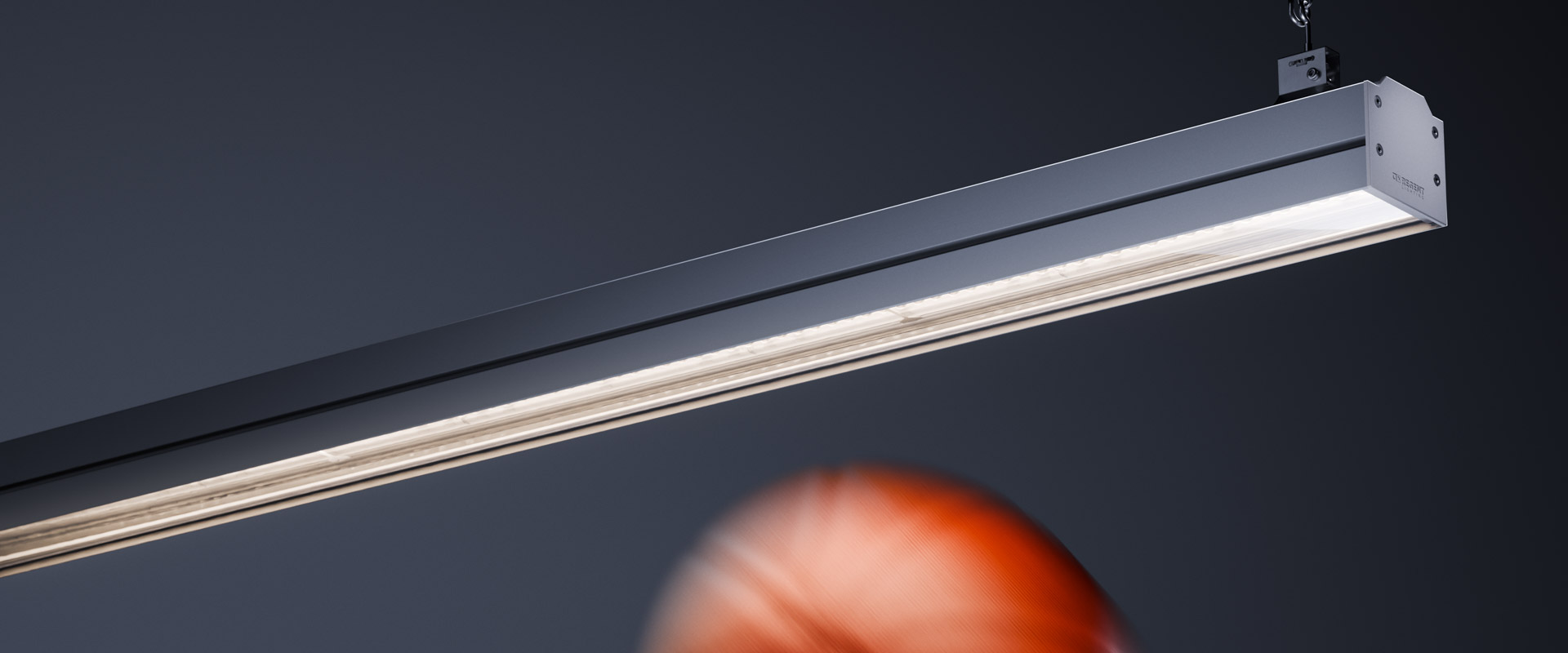

    Unshakeably ball-proof

    TITAN fulfils the strict requirements of DIN EN 12193 for ball impact safety and offers reliable protection against damage with its robust IK08 protection rating. This tested conformity to standards guarantees maximum safety and durability, making TITAN the perfect solution for all environments where robustness and safety are paramount - a guarantee of reliable lighting, even under demanding conditions.

    Seamless integration for flexible lighting solutions

    The easy integration of TITAN into any lighting project is a decisive advantage. Thanks to four application-specific beam characteristics, ranging from wide, uniform illumination to a targeted beam of light, the light distribution can be precisely controlled. Various length combinations take account of different room heights and architectural conditions, while a wide range of mounting options simplify installation and enable flexible customisation. TITAN therefore not only provides optimum lighting, but also impresses with its user-friendliness and easy integration into any project, especially demanding ones.


    With an impressive 163 lumens per watt, TITAN sets new standards in professional lighting. This exceptional luminous efficacy, combined with state-of-the-art lens optics, guarantees maximum brightness with minimum energy consumption. Every watt is optimally utilised, which not only leads to considerable energy savings, but also makes an important contribution to greater sustainability in the lighting sector.

    Robustness for reliable protection

    The TITAN luminaire range has IP54 protection as standard, both for individual luminaires and for system luminaires up to a length of 4.5 metres. The IP54 classification in accordance with international standard IEC 60529 certifies effective protection against dust and splash water from any angle. This robust design makes TITAN a reliable and durable lighting solution for demanding environments such as sports halls, industrial facilities, covered outdoor areas and other applications where high resistance and reliability are required.


    Customised options for every need

    The versions in clear or opal optics open up a wide range of possible applications and help to make planning processes more efficient. By using TITAN, a project can be realised completely and flexibly, significantly reducing the need for different lighting solutions.

    This flexible customisation enables a wide range of possible uses for the most diverse requirements and applications.

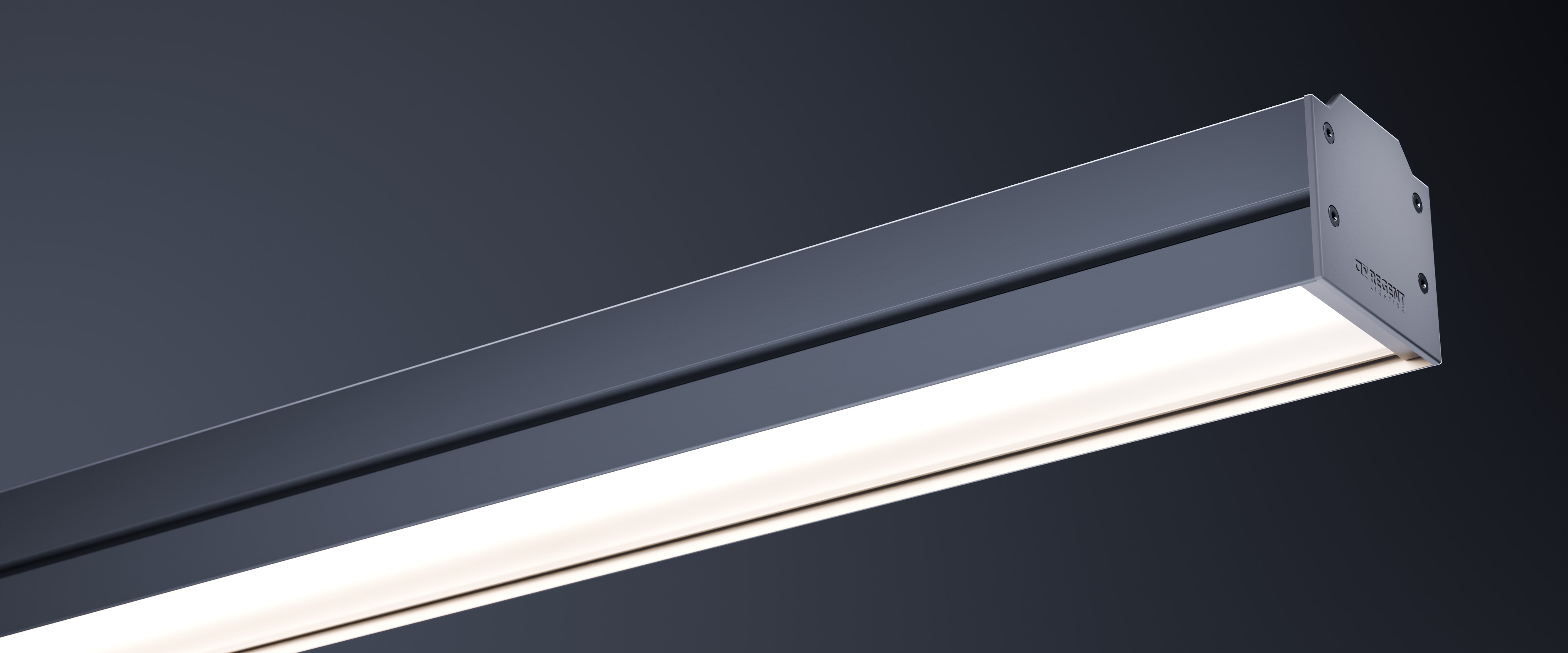

    TITAN with opal optics. For use in areas with lower ceilings, such as corridors, equipment rooms, waiting rooms or wherever soft, uniform light is preferred.

    Clear optics are the ideal solution for places where precise and direct illumination is required. Whether in multi-purpose, sports or industrial halls - clear visibility is always guaranteed.

    Features

    • Fulfils all requirements for sports lighting and combines these with the installation benefits of a modular continuous-row lighting system
    • Integrated RUN diffuser for uniform and seamless light lines
    • Available as a single luminaire or system luminaire
    • Optionally with opal or clear diffuser, customised to the application
    • Robust and high-quality, ideal for sports and multi-purpose halls
    • Wide range of design options, such as multiple light channels connected in parallel, as well as additional accessories on request

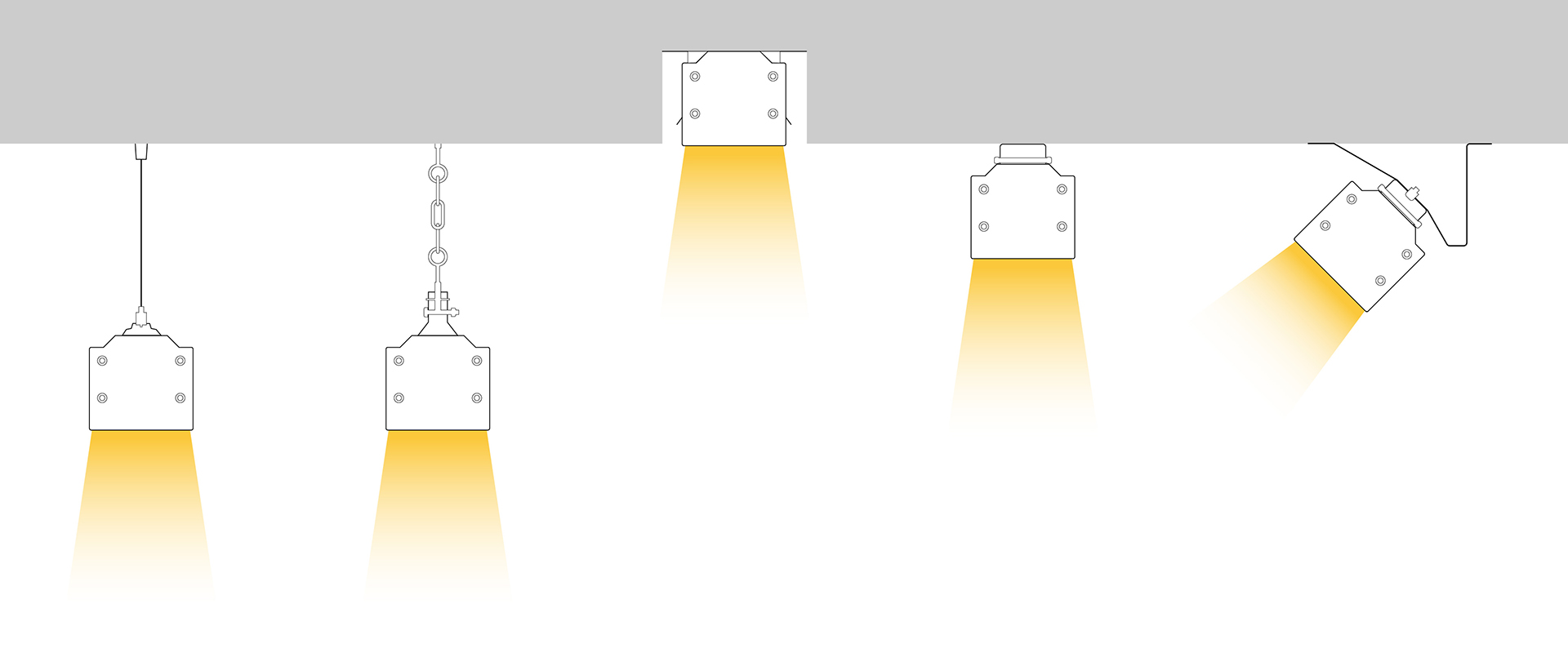

    • Suitable for recessed ceiling mounting, ceiling surface-mounting, wall surface-mounting and pendant mounting




    Specifications

    • Standard-compliant ball impact safety in accordance with DIN EN 18032-3 tested by TÜV SÜD (accredited test laboratory)
    • Rollable RUN diffuser for uninterrupted optics, can be shortened on site
    • IP54 protection rating as standard for individual luminaires and system luminaires up to 4.5 m
    • Four application-specific beam characteristics
    • Maximum efficiency thanks to state-of-the-art lens optics (166 lm/W)
    • Aluminium trunking, natural anodised finish
    • Various length combinations: 1.5 m or multiples thereof
    • Suitable for recessed ceiling, surface-mounted ceiling, surface-mounted wall and pendant mounting
    • Digitally controllable with DALI 2 for amplitude dimming
    • DALI2 digitally controllable and addressable
    • Impact resistance of IK08
